Application Examples

Using the same principle, let's try a completely new image slicing method, not just 9-slicing.

Table Example

For example, let's say we have a table image like this:

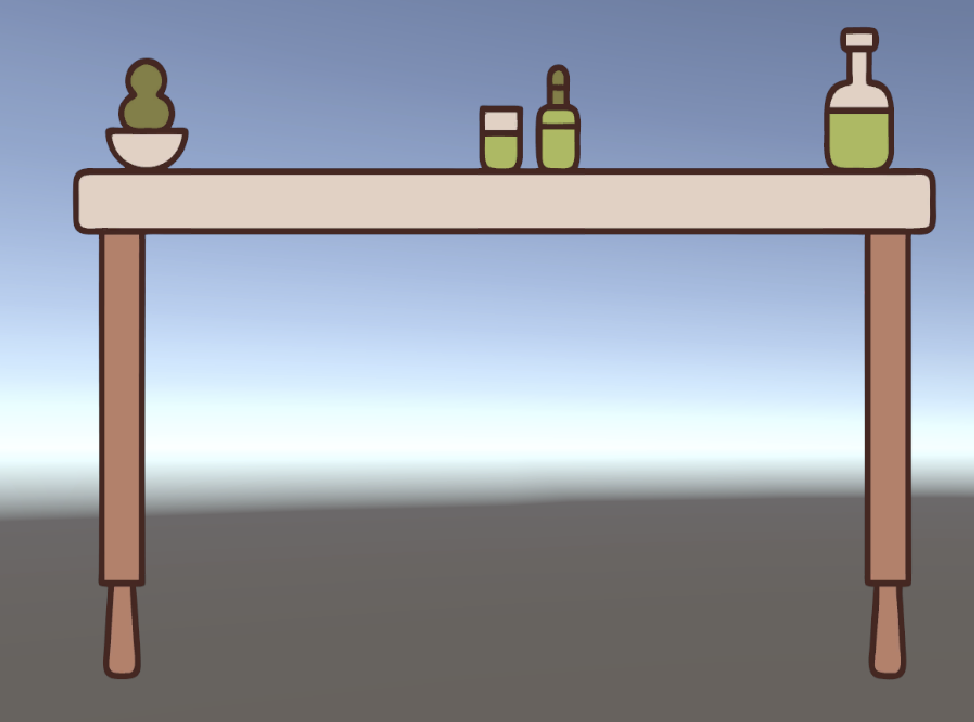

We want to stretch this table naturally.

• The table should be able to stretch horizontally, and the legs should be able to stretch as well.
• However, we want the size of each object to be maintained.

Slicing

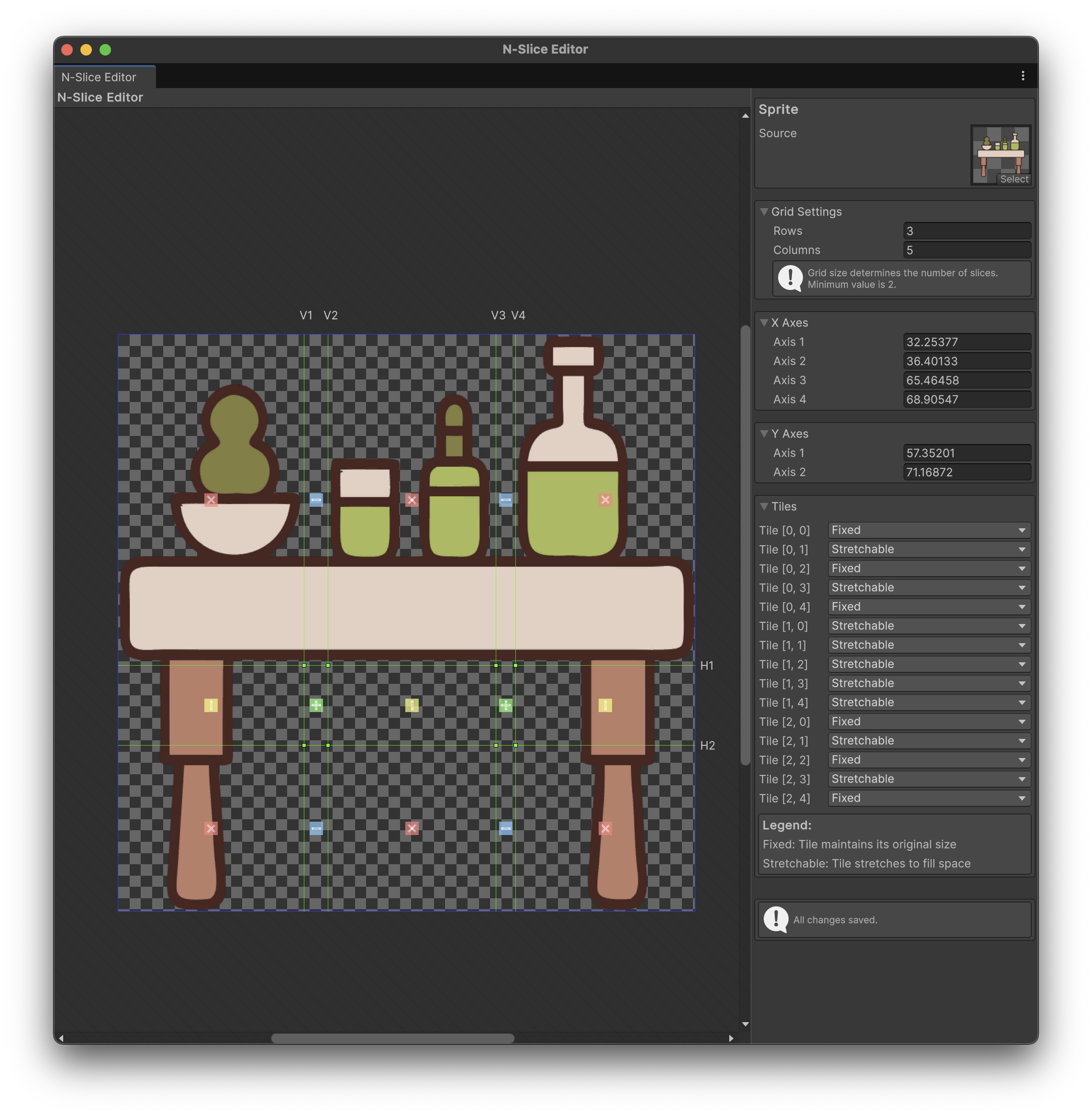

We can slice it as shown above.

• Set up a 3x5 grid
• Keep the size of each object fixed
• Allow only the necessary parts to stretch horizontally or vertically naturally without image distortion.

A More Complex Example

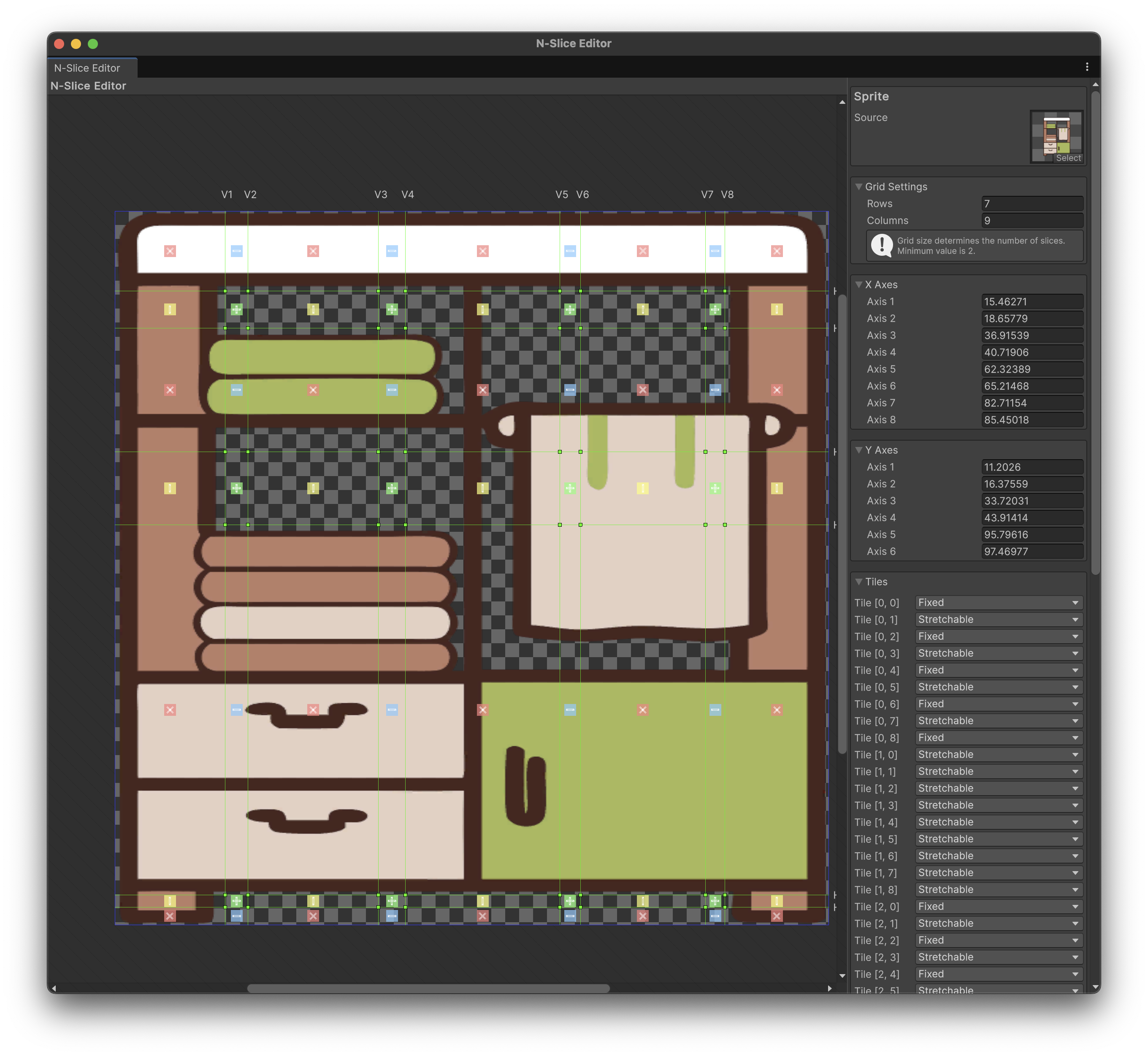

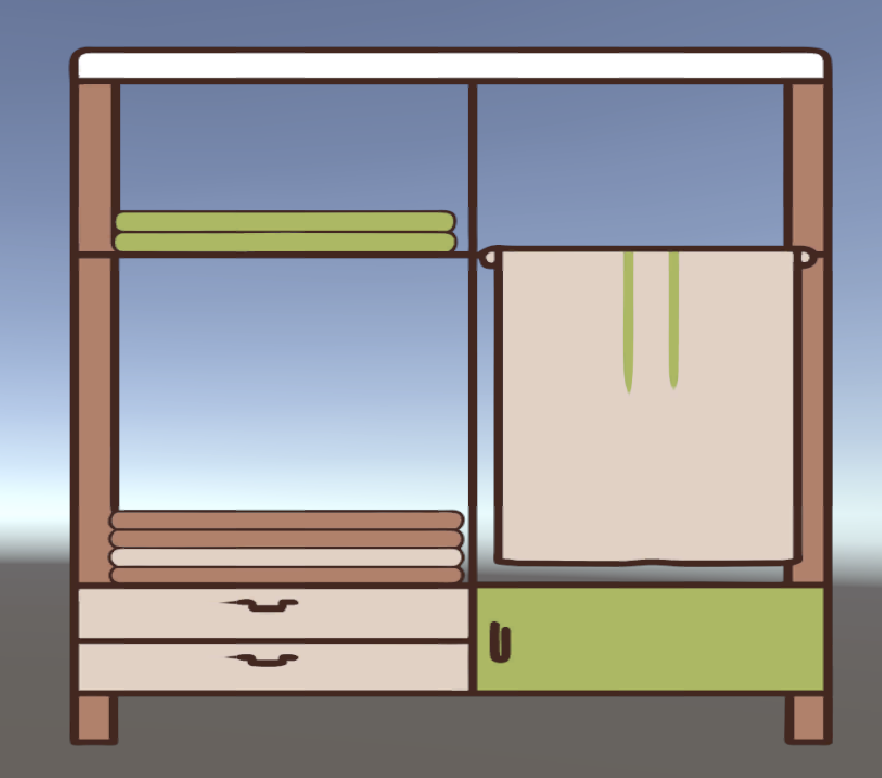

Here's a more complex example with a closet image:

These examples demonstrate how N-Slicer can be used to create complex slicing configurations that wouldn't be possible with traditional 9-slicing, allowing for natural stretching of images while maintaining the proportions of key elements.
